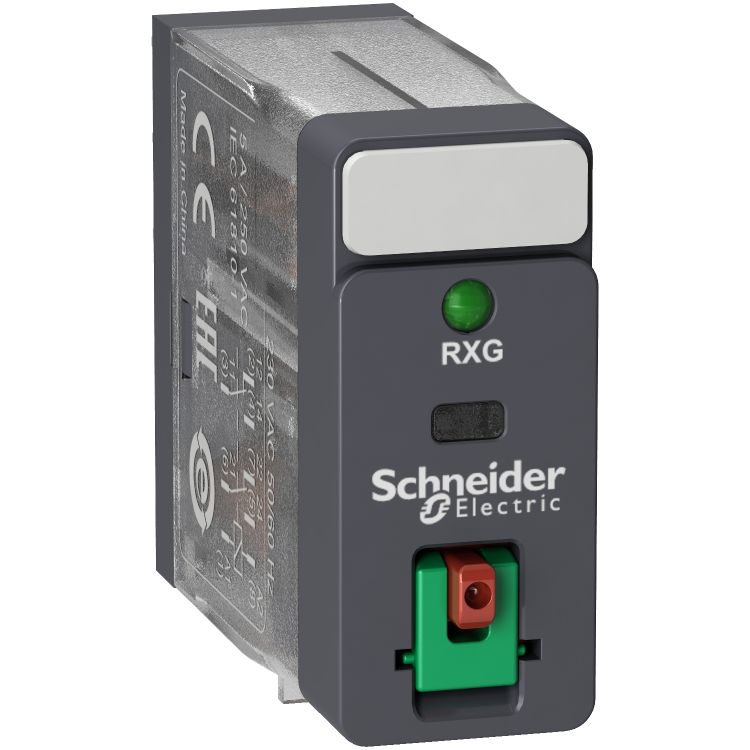

Schneider Signaling Zelio Relay_ interface plug-in relay - Zelio RXG - 2C/O standard-230VAC-5A - with LTB and LED_ [RXG22P7]
Industrial Automation / Signaling / Relay
"This Harmony RXG plug-in relay socket has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0_ [RXG22P7]
Specifications
Main
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Interface relay |
| Product or component type | Plug-in relay |
| Device short name | RXG |
| Contacts type and composition | 2 C/O |
Complementary
| Status LED | With |
|---|---|
| Contacts material | Silver alloy (AgSnO2In2O3) |
| Maximum contact resistance | 100 mOhm |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL 5 A at 30 V (DC) conforming to IEC 5 A at 250 V (AC) conforming to IEC 5 A at 250 V (AC) conforming to UL |
| maximum switching voltage | 250 V AC 30 V DC |
| load current | 5 A at 250 V AC |
| maximum switching capacity | 1250 VA |
| minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| operating rate | <= 1800 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for NO resistive load at 55 °C 100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 6 kV 1.2/50 µs |
| dielectric strength | 1000 V AC between contacts with micro disconnection 5000 V AC between coil and contact with reinforced insulation 3000 V AC between poles with basic insulation |
| Coil resistance | 23500 Ohm +/- 15 % |
| insulation resistance | 1000 MOhm at 500 V DC |
| test levels | Level A group mounting |
| Mounting position | Any position |
| Average consumption in VA | 0.82 VA 60 Hz |
| drop-out voltage threshold | >= 0.3 Uc AC |
| control circuit voltage limits | 0.8...1.1 Uc AC |
| Coil insulation class | Class F |
| Operate time | 20 ms |
| Release time | 20 ms |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Safety reliability data | B10d = 100000 |
| Colour of cover | Standard |
| Control type | Lockable test button |
| Local signalling | Flag |
| Torque value | 0.8 N.m |
| Net weight | 0.02 kg |
| Device presentation | Complete product |
Environment
| vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation |
|---|---|
| IP degree of protection | IP40 |
| shock resistance | 20 gn in operation 100 gn not in operation |
| Protection category | RT I |
| Standards | CSA C22.2 No 14 UL 508 IEC 61810-1 |
| Product certifications | UL EAC CE CSA DNV-GL |
| Pollution degree | 2 |
| Overvoltage category | III |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…85 % |
