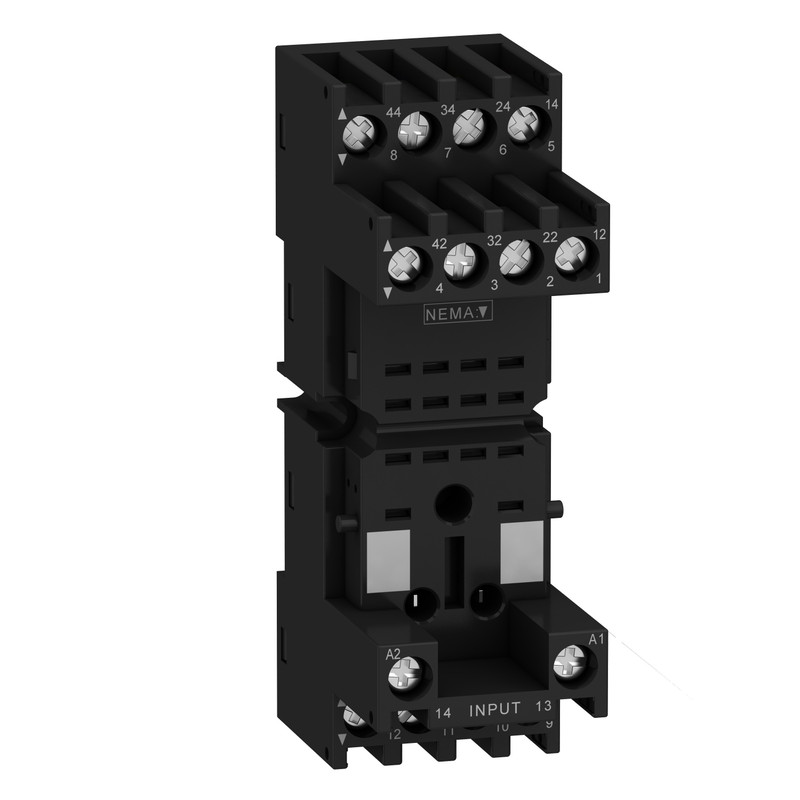

Schneider Signaling Zelio Relay_ Harmony, Socket, for RXM2/RXM4 relays, screw connectors, mixed contact_ [RXZE2M114M]
Industrial Automation / Signaling / Relay
This Zelio RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use with space-saving design. It helps to reduce the size of enclosures and increases machine reliability: you can mount nearly everywhere. It is compatible with plug in control relay. Easy installation and connect to the relay from its socket. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs)._ [RXZE2M114M]
Specifications
Main
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
|---|---|
| Product or component type | Socket |
| Contact terminal arrangement | Mixed |
| product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact |
| Shape of pin | Flat |
| Device short name | RXZ |
| Sale per indivisible quantity | 10 |
Complementary
| [Ith] conventional free air thermal current | 10 A |
|---|---|
| [Ue] rated operational voltage | < 250 V |
| connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| tightening torque | < 1 N.m for M3 screw(s) |
| fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Marking | CE |
| Width | 27 mm |
| Net weight | 0.056 kg |
Environment
| [Uimp] rated impulse withstand voltage | 4 kV |
|---|---|
| Overvoltage category | III |
| Pollution degree | 3 |
| Standards | IEC 61984 |
| Product certifications | UL CSA Lloyd's |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 3000 V |
