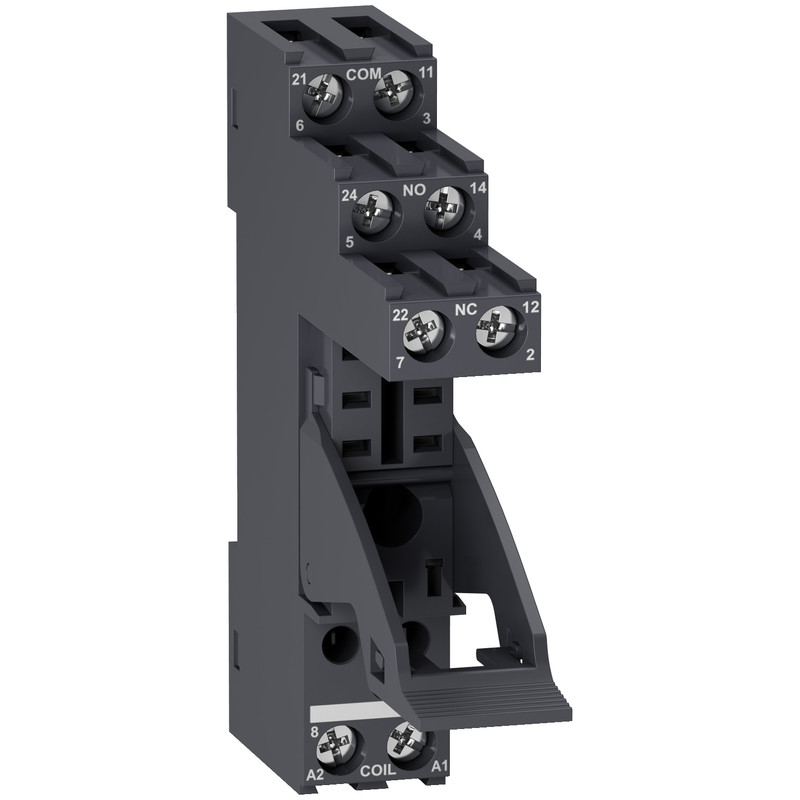

Schneider Signaling Zelio_ socket RGZ - separate contact -5 A - 250 V - Screw connector_ [RGZE1S48M]
Industrial Automation / Signaling / Relay Accessories
This Zelio RGZ timing relay socket has separate contact terminals. It enables quick and easy plug-in installation of relays without the need for tools. It is compatible with all 2 C/O DPDT RXG relays. Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime._ [RGZE1S48M]
Specifications
Main
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| Contact terminal arrangement | Separate |
Complementary
| product compatibility | Plug-in relay RXG with 2 C/O contact |
|---|---|
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation 4 kV between contacts with basic insulation 4 kV between poles with basic insulation 4 kV between terminals and DIN rail with basic insulation |
| [In] rated current | 5 A |
| [Ue] rated operational voltage | 250 V conforming to IEC 300 V conforming to UL |
| dielectric strength | 5 kV between coil and contact with reinforced insulation 2.5 kV between contacts with basic insulation 3 kV between poles with basic insulation 3 kV between terminals and DIN rail with basic insulation |
| connections - terminals | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
| Screw type | M3 |
Environment
| Ambient air temperature for storage | -40…85 °C |
|---|---|
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 10…85 % |
| Standards | CSA C22.2 No 14 IEC 61984 UL 508 |
| Product certifications | EAC CE CSA UL DNV-GL |
| IP degree of protection | IP20 |
| Overvoltage category | III |
| Pollution degree | 3 |
