Schneider Signaling Zelio_ phase control relay RM17-T - range 183..528 V AC_ [RM17TG00]
Industrial Automation / Signaling / Relay

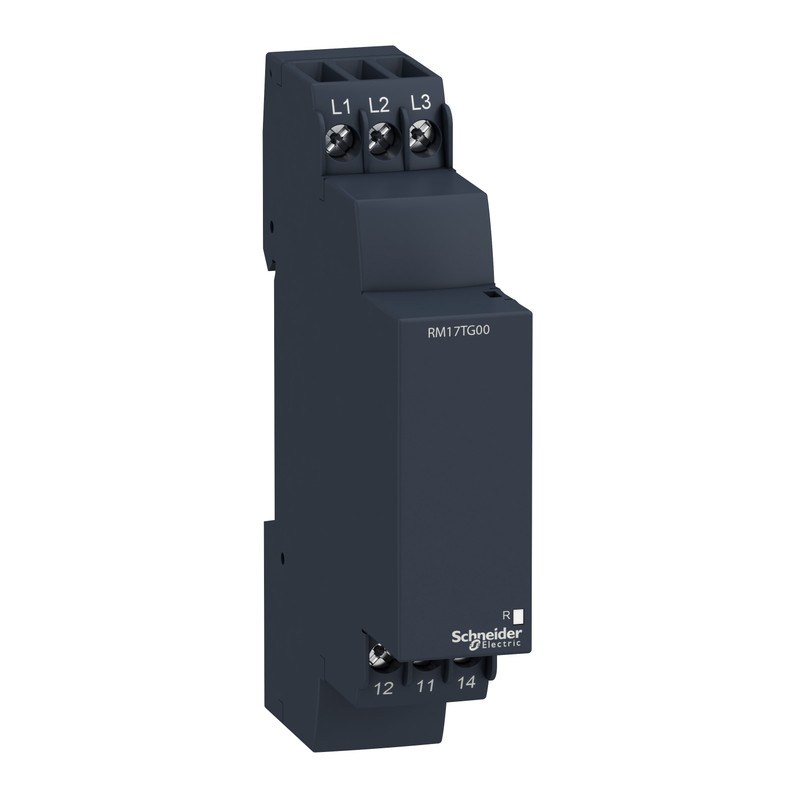

This Harmony RM17-TG relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. [RM17TG00]
Specifications
Main
| Range of product | Harmony Control Relays |
|---|---|
| Product or component type | 3-phase control relay |
| Relay type | Control relay |
| Product specific application | For 3-phase supply |
| Relay name | RM17TG |
| Relay monitored parameters | Phase sequence Phase failure detection (2 or more phase cut) |
| time delay | Without |
| Switching capacity in VA | 1250 VA |
| measurement range | 208...480 V voltage AC |
| Contacts type and composition | 1 C/O |
| [Uc] control circuit voltage | 208...480 V |
Complementary
| maximum switching voltage | 250 V AC 250 V DC |
|---|---|
| minimum switching current | 10 mA at 5 V DC |
| supply voltage limits | 183…528 V AC |
| Control circuit voltage limits | - 12 % + 10 % Un |
| power consumption in VA | 0…22 VA at 400 V AC 50 Hz |
| voltage detection threshold | < 100 V AC |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Output contacts | 1 C/O |
| Nominal output current | 5 A |
| measurement voltage limits | 183…528 V AC |
| delay at power up | 650 ms |
| voltage range | 183...528 V |
| response time | <= 130 ms (in the event of a fault) |
| Marking | CE |
| overvoltage category | III conforming to IEC 60664-1 |
| insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60255-5 > 500 MOhm at 500 V DC conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
| Supply frequency | 50/60 Hz +/- 10 % |
| operating position | Any position without derating |
| connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| local signalling | LED (yellow) for relay ON |
| mounting support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| operating rate | <= 360 operations/hour full load |
| utilisation category | AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1 |
| Safety reliability data | MTTFd = 924.6 years B10d = 850000 |
| Width | 17.5 mm |
| Net weight | 0.13 kg |
Environment
| electromagnetic compatibility | Emission standard for industrial environments conforming to EN/IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3 Immunity for industrial environments conforming to EN/IEC 61000-6-2 |
|---|---|
| Standards | EN/IEC 60255-1 |
| Product certifications | C-Tick GL CSA UL GOST |
| Directives | 73/23/EEC - low voltage directive 89/336/EEC - electromagnetic compatibility |
| Ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -20…50 °C |
| relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 |
| shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529 |
| pollution degree | 3 conforming to IEC 60664-1 |
| dielectric test voltage | 2 kV, 1 min AC 50 Hz |
| non-dissipating shock wave | 4 kV |
