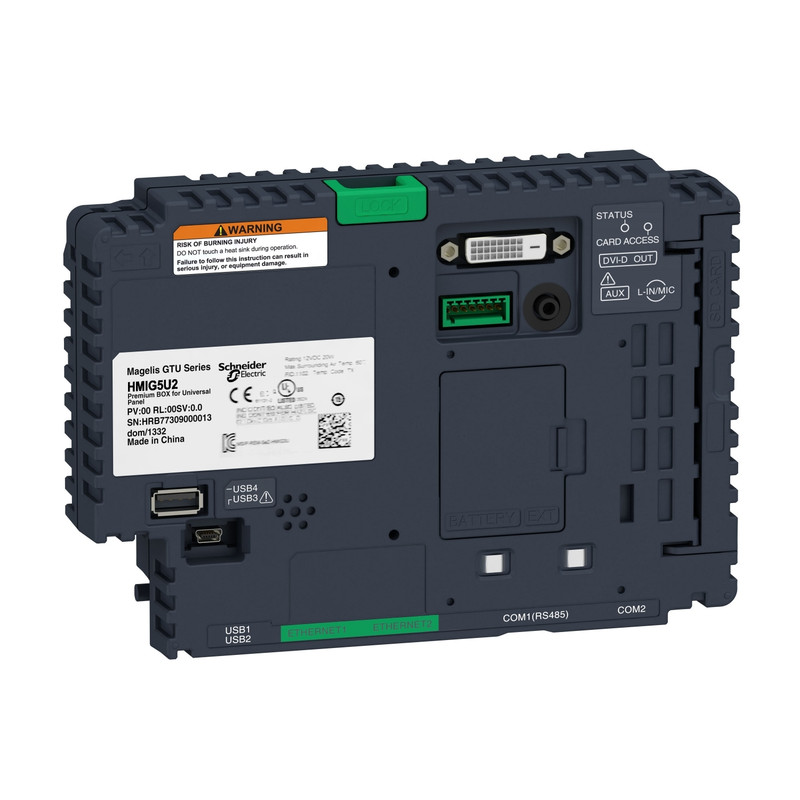

Schneider HMI Magelis GTU_ Open BOX for Universal Panel_ [HMIG5U2]
Industrial Automation / HMI / HMI
This product is part of the Harmony GTU range, an offer of High performance IoT-ready modular HMI panels from 7 to 19inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 2GB. This open box supports Windows Embedded 7 operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is certified by ATEX, CE, CULus, IEC, CUL, GL, LR, BV, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. Harmony GTU (formerly known as Magelis GTU) are universal panels that include smartphone-like interface and Wireless technology. They offer unmatched comfort of use with no compromise on performance and openness.
Specifications
Main
| range of product | Harmony GTU |
|---|---|
| product or component type | Base unit |
| device short name | Open Box |
| range compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply |
Complementary
| integrated connection type | Ethernet TCP/IP with 2 RJ45 COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port mini B USB DVI-D video port DVI-D Microphone mini-jack USB 2.0 port with 3 USB type A |
|---|---|
| communication port protocol | Modbus Modbus TCP/IP Uni-Telway |
| operating system | Windows Embedded 7 |
| software package | Internet Explorer Vijeo Citect web client Vijeo Designer run time .NET framework 4.0 Adobe PDF reader Multimedia player Office reader VNC client/server |
| processor name | Intel X86 1.33 GHz |
| data storage equipment | 32 GB CFast card |
| port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| memory description | 512 kB NVRAM backup memory 2 GB RAM internal |
| type of cooling | Natural convection |
| width | 188 mm |
| Height | 131 mm |
| depth | 45 mm |
| Net weight | 0.9 kg |
Environment
| standards | CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2 |
|---|---|
| product certifications | CE CULus ATEX IEC-Ex RCM GL KC CUL EAC ABS BV CCS DNV LR RINA |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -20…60 °C |
| pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| relative humidity | 10…90 % non-condensing |
| operating altitude | 2000 |
| vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2 |
| electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.1 cm |
| Package 1 Width | 21.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 1.262 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 5.862 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 80.0 cm |
| Package 3 Width | 120.0 cm |
| Package 3 Length | 105.0 cm |
| Package 3 Weight | 79.344 kg |
