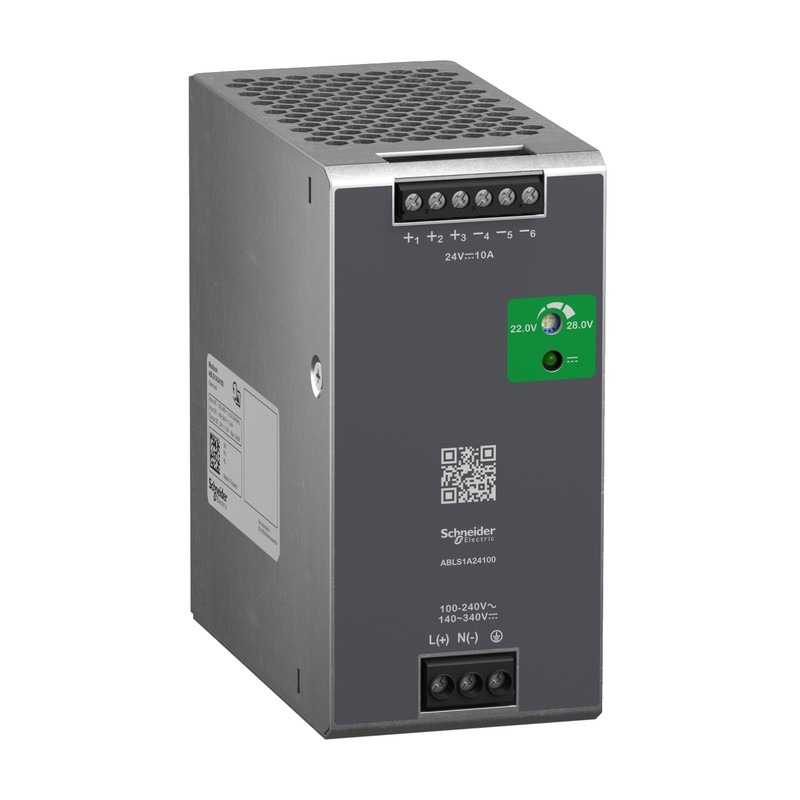

Schneider Power Supply Phaseo ABLS_ Regulated Power Supply, 100-240V AC, 24V 10 A, single phase, Optimized_ [ABLS1A24100]

Schneider Power Supply Phaseo ABLS_ Regulated Power Supply, 100-240V AC, 24V 10 A, single phase, Optimized_ [ABLS1A24100]

https://www.hsedubai.com/web/image/product.template/43473/image_1920?unique=29e3b48

Industrial Automation / Power Supply / Power Supply

729.65 AED 729.65 AED 729.65 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 10A at 24V DC and a rated power output of 240W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 60mm, its height is 123,6mm, its depth is 117,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.800kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its book housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness._ [ABLS1A24100]

    Specifications

    Main

    Range of productModicon Power Supply
    Product or component typePower supply
    Power supply typeRegulated switch mode
    Variant optionOptimized
    Enclosure materialAluminium
    Nominal input voltage100...240 V AC single phase
    100...240 V AC 2 phases
    140...340 V DC
    Rated power in W240 W
    output voltage24 V DC
    Power supply output current10 A

    Complementary

    Input voltage limits85...264 V AC (without temperature derating)
    120...375 V DC (without temperature derating)
    85…120 V DC (with temperature derating)
    Nominal network frequency50…60 Hz
    Network system compatibilityTN
    TT
    IT
    maximum leakage current1 mA 240 V AC
    input protection typeIntegrated fuse (not interchangeable) 6.3 A
    External protection (recommended) 20 A Curve B
    External protection (recommended) 20 A Curve C
    External protection (recommended) 6 A Curve B
    External protection (recommended) 6 A Curve C
    inrush current30.0 A at 115 V
    60.0 A at 230 V
    power factor0.95 at 115 V AC
    0.95 at 230 V AC
    efficiency85 % at 115 V AC
    88 % at 230 V AC
    Output voltage adjustment22...28 V
    Power dissipation in W36 W
    current consumption< 2.8 A 115 V AC
    < 1.4 A 230 V AC
    < 2.4 A 140 V DC
    Turn-on time< 1 s
    holding time> 20 ms 115 V AC
    > 20 ms 230 V AC
    Startup with capacitive loads8000 µF
    Residual ripple< 120 mV
    Expected capacitor life time10 year(s)
    meantime between failure [MTBF]700000 h at 25 °C, full load conforming to SR 332
    output protection typeAgainst overload and short-circuits, protection technology: automatic reset
    Against over temperature, protection technology: manual reset
    Against overvoltage, protection technology: manual reset
    connections - terminalsScrew connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output
    Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output
    Screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input
    Screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input
    line and load regulation< 0.5 % network 0 to 100 % load at 25 °C
    < 1 % network full voltage range in line at 25 °C
    status LED1 LED (green) output voltage
    Depth117.6 mm
    Height123.6 mm
    Width60 mm
    Product weight0.8 kg
    Output couplingParallel
    Serial
    mounting supportTop hat type TH35-15 rail conforming to IEC 60715
    Top hat type TH35-7.5 rail conforming to IEC 60715
    Double-profile DIN rail
    supplySELV conforming to EN/IEC 60950-1
    SELV conforming to EN/IEC 60204-1
    SELV conforming to IEC 60364-4-41
    dielectric strength3000 V AC with input to output

    Environment

    StandardsEN 62368-1
    EN/IEC 61204-3
    EN 61000-6-1
    EN 61000-6-2
    EN 61000-6-3
    EN 61000-6-4
    EN 61000-3-2
    EN 61000-3-3
    UL 62368-1
    CSA C22.2 No 62368-1
    UL 508
    CSA C22.2 No 107.1
    EN/IEC 62368-1
    product certificationsCE
    CUL listed
    CUL recognized
    RCM
    CB Scheme
    EAC
    KC
    environmental characteristic3M4 conforming to IEC 60721-3-3
    operating altitude< 5000 m
    shock resistance100 m/s² for 11 ms
    IP degree of protectionIP20
    Ambient air temperature for operation-20…40 °C without derating mounting position A 115 V AC < 2000 m
    -20…50 °C without derating mounting position A 230 V AC < 2000 m
    40…70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m
    50…70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m
    electrical shock protection classClass I
    Pollution degree2
    vibration resistance3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6
    10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6
    Electromagnetic immunityImmunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2
    Immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2
    Immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3
    Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3
    Immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3
    Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4
    Surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5
    Surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5
    Immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6
    Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8
    Immunity to voltage dips conforming to EN/IEC 61000-4-11
    Disturbing field emission conforming to EN 55016-2-3
    Limits for harmonic current emissions conforming to EN 61000-3-2
    Conducted disturbance emission conforming to EN 55016-1-2
    Conducted disturbance emission conforming to EN 55016-2-1
    electromagnetic emissionConducted emissions conforming to EN 61000-6-3
    Radiated emissions conforming to EN 61000-6-4
